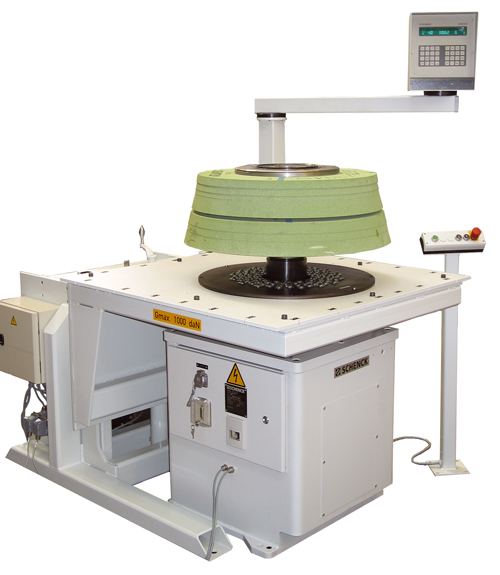

Static Balancing Machines ESA, ESF

No mechanical influences on the rotor during measurement
Determination of unbalance and rotor weight
Simple and low-cost rotor adapters
No drive system and no protection device required
Short measuring times

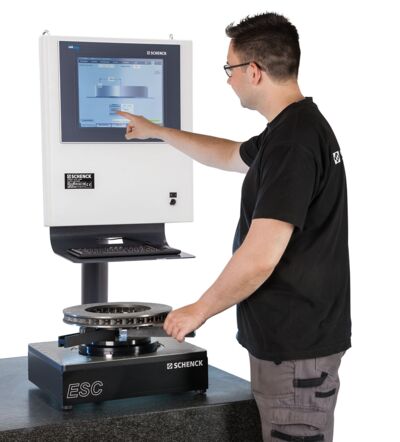

Powerful PC based CAB 845 measuring unit with TFT screen
2 versions available:
- Table-top version
- Enclosure-mounted version for large rotors

Special features

Direct display on achieving of tolerance limit, operator prompting during calibration process, memory for calibration data for easy change-over from one work-piece type to the next at the push of a button.

Compact design ensures optimum ease of deployment.

Program for compensating of adapter errors, test program displaying operator or system errors, process control through host computer is possible, integral product data base.

Σχέδιο

Τεχνικά δεδομένα

Imprint

Below, you can activate/deactivate the individual technologies that are used on this website.

These Cookies make a website usable by providing basic functions such as page navigation, language settings, and access to protected areas. As the website is unable to function properly without them, you cannot opt out of this kind of Cookies.

These Cookies help us to improve the functionality and attractiveness of our websites, and your user experience by saving, for example, your settings, and selections as well as filters, and to recognize your device on subsequent visits.

These Cookies allow us, and the service providers (e.g. Piwik Pro) to collect and analyze information and statistics about your interaction with our website. This helps to optimize our website using the findings obtained.

Back More information (Privacy Statement) Imprint

Technical data at a glance		ESA	ESB	ESC	ESD	ESE	ESF
Load carrying capability of the balancing unit	[kg]	< 1	1 - 3	3 - 6	6 - 20	20 - 60	60 - 200
Diameter ¹⁾	[mm]	250	250	500	1000	1000	1500
Measurable unbalance, max.	[kgmm]	7	10	14	25	100	330
Measuring uncertainty ²⁾	[gmm]	0,5	3	5	15	40	80
Measuring time	[s]	2 ... 5	2 ... 5	2 ... 5	2 ... 5	2 ... 5	2 ... 5
Power supply		230 V, 50 Hz	230 V, 50 Hz	230 V, 50 Hz	230 V, 50 Hz	230 V, 50 Hz	230 V, 50 Hz
Width A ³⁾	[mm]	480	480	480	480	480	480
Depth B ³⁾	[mm]	390	390	390	390	390	390
Height C ³⁾	[mm]	120	120	120	120	120	120
Typical rotors
Grinding discs		•	•	•	•	•	•
Wheel hubs, brake drums, brake discs			•	•	•
Clutch components, flywheels		•	•	•	•
Ventilators, fans		•	•	•	•	•
Chopper rotors		•	•	•
Railway carriage wheels							•
Vehicle tires					•	•
Complete wheels					•	•	•
Propellers					•	•	•

Basic machine	Order-Nr.	R0050100.02	R0050200.02	R0050300.02	R0050400.02	R0050500.02	R0050600.02

1) Higher diameters available to cater for special requirements, may require lifting table
2) In accordance with DIN 1319 without adaptor errors
3) Data non-binding, depending on respective equipment 44
